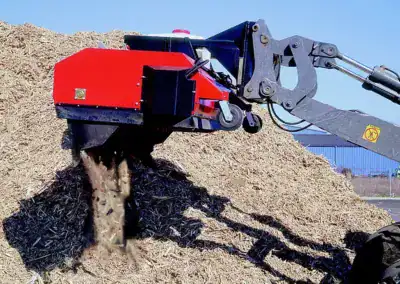

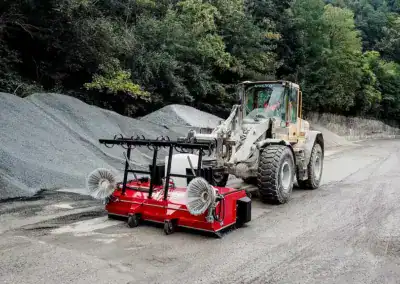

GSX Model Dirt Collection Sweeper
for mounting on your carrier vehicle
More robust, fully encapsulated sweepers with automatic brush roller adjustment sweep almost dust-free into the integrated dirt container.
Working widths: 1.20 m – 2.40 m
GSX-1200
GSX-1200 Dirt Collection Sweeper
Working width 1.20 m, with integrated dirt container, dirt container volume approx. 240 liters, maintenance-free hydraulic drive, fully encapsulated for almost dust-free operation, oscillating brush roller suspension, brush roller diameter 600 mm, brush roller trim 50/50% polypropylene/steel crimped wire, heavy-duty chassis design, three 360° rotatable wheels, standard equipment with super-elastic tires, including Indunorm CEL ST 3 hydraulic quick couplings, without mounting for carrier vehicle.
GSX-1200 with 400 liter dirt container volume
Working width 1.20 m, with integrated dirt container, dirt container volume approx. 400 liters, fully encapsulated for almost dust-free operation, heavy-duty chassis design, standard equipment with 3 heavy-duty wheels, maintenance-free hydraulic drive, fully encapsulated for almost dust-free operation, oscillating brush roller suspension, brush roller diameter 600 mm, brush roller trim 50/50% polypropylene/steel crimped wire, heavy-duty chassis design, three 360° rotatable wheels, including Indunorm CEL ST 3 hydraulic quick couplings, without mounting for carrier vehicle.
GSX-1500
GSX-1500 Dirt Collection Sweeper with a working width of 1.5m
Working width 1.50 m, with integrated dirt container, dirt container volume approx. 260 liters, fully encapsulated for almost dust-free operation, other design and equipment as model GSX-1200, without mounting for carrier vehicle, standard equipment with 3 super-elastic tires, without mounting for carrier vehicle.
GSX-1500 with 500 liter dirt container volume
Working width 1.50 m, with integrated dirt container, dirt container volume approx. 500 liters, fully encapsulated for almost dust-free operation, heavy-duty chassis design, standard equipment with 3 heavy-duty wheels, other design and equipment as model GSX-1200/400 liter, without mounting for carrier vehicle
GSX-2000
Dirt Collection Sweeper with a working width of 2 meters GSX-2000
Working width 2.00 m, with integrated dirt container, dirt container volume approx. 305 liters, maintenance-free hydraulic drive, fully encapsulated for almost dust-free operation, oscillating brush roller suspension, brush roller diameter 600 mm, brush roller trim 50/50% polypropylene/steel crimped wire, heavy-duty chassis design, four 360° rotatable wheels, standard equipment with super-elastic tires, including Indunorm CEL ST 3 hydraulic quick couplings, without mounting for carrier vehicle.
GSX-2000 with 670 liter dirt container volume
Working width 2.00 m, with integrated dirt container, dirt container volume approx. 670 liters, fully encapsulated for almost dust-free operation, heavy-duty design for extreme applications, standard equipment with 4 heavy-duty wheels, maintenance-free hydraulic drive, fully encapsulated for almost dust-free operation, oscillating brush roller suspension, brush roller diameter 600 mm, brush roller trim 50/50% polypropylene/steel crimped wire, heavy-duty chassis design, four 360° rotatable wheels, including Indunorm CEL ST 3 hydraulic quick couplings, without mounting for carrier vehicle.
GSX-2300
Dirt Collection Sweeper with a working width of 2.30 meters GSX-2300
Working width 2.30 m, with integrated dirt container, dirt container volume approx. 350 liters, fully encapsulated for almost dust-free operation, other design and equipment as model GSX-2000, without mounting for carrier vehicle, standard equipment with 4 super-elastic tires
GSX-2400 with approx. 800 liter dirt container volume
Working width 2.40 m, with integrated dirt container, dirt container volume approx. 800 liters, fully encapsulated for almost dust-free operation, heavy-duty design for extreme applications, especially suitable for mounting on large wheel loaders, standard equipment with 4 heavy-duty wheels, other equipment as model GSX-2000 / 670 liter, without mounting for carrier vehicle
Typical industries for the use of GSX attachment sweepers
- Recycling industry
- Wood processing
- Chemicals
- Pulp and paper industry
Available mounting devices
Forklifts and wheel loaders with pallet forks
Mounting for hanging the sweeper in the forklift forks of a forklift or wheel loader, maximum fork cross-sectional dimensions 185 x 68 mm, with floating position, including fork clamping screw connection and safety bracket
Quick-change device wheel loader
Wheel loader and compact loader mounting plate for direct mounting of the sweeper to the quick-change device of a wheel loader, with floating position
Front loader
Device for mounting the sweeper to the front loader of a tractor, with floating position, (the mounting device for pallet forks is also required)
Front triangle mounting small tractors
Front triangle for mounting the sweeper or a lifting mast to the front hydraulics of a municipal tractor
Three-point hitch tractors
for mounting the sweeper or a lifting mast to the front/rear three-point linkage of a tractor
Device plate Unimog
suitable for Unimog vehicle plate for front mounting of the sweeper or a lifting mast to a Unimog (the lifting hydraulic cylinder or the lifting mast for high discharge is also required)
Lifting hydraulic cylinder
the Unimog equipment plate is also required for emptying the sweeper, emptying height approx. 50 cm
Lifting mast for high discharge for GSX-1200 or GSX-1500
the front three-point mounting for small tractors, front/rear three-point mounting for tractors or mounting plate for Unimog is also required, emptying height 1.60 m, (a 2nd free control circuit is required on the carrier vehicle)
Lifting mast for high discharge for GSX-1500/500 liter or GSX-2000
reinforced version, otherwise as with lifting mast for GSX-1500
Increased lifting height for lifting mast, 2 m
suitable for both versions of the lifting mast
Forks for lifting mast
required for mounting a GSX-1500/500 liter or GSX-2000 to a lifting mast (the sweeper must be equipped with forklift mounting)
Chassis for lifting mast
to reduce the front axle load of the carrier vehicle, in conjunction with lifting mast
Equipment
The following additional equipment is available:
Side brush right or left
Sweeping diameter 600 mm, can be switched on separately, adjustable speed, with its own hydraulic drive. Optional side brush Ø 750 mm including carrier plate available
Impact protection for side brush
massive steel bracket around side brush
Water spray system 100 liters / 200 liters
operated with 12 V electric pump, spray bar with finely atomizing nozzles, including water tank
24 V water pump
24 V instead of 12 V (optional)
Scraper bar for removing extremely encrusted dirt
foldable, with strong spring steel segments, applicable on asphalt or concrete floors, e.g. at construction site exits
100% steel bristle trim for main brush roller
instead of the standard trim made of 50/50% steel/polypropylene
Hydraulic unit with gasoline engine
as self-drive for all models of the GSX series, robust 1-cylinder, 11 HP (8.1 KW) Briggs & Stratton gasoline engine, with E-starter, including remote control, complete with soundproof hood, vibration damper and hydraulic pump
Hydraulic unit with diesel engine
as self-drive for all models of the GSX series, robust 1-cylinder, 8.5 KW Kubota diesel engine, with E-starter, complete with soundproof hood and hydraulic pump
Remote control for diesel unit
complete with water- and impact-protected control unit for the operation of diesel engine and water spray device
Hydraulic unit with electric motor
as self-drive for all models of the GSX series, equipped with powerful electric motor for continuous operation, optionally 24 or 48 volts, adaptation to other drive voltage possible, specially designed for use with electric forklifts, complete with remote control and hydraulic pump
hydraulic operation of the emptying mechanism
with or without hydraulic unit
Gear oil divider
required for oil quantities from 110 liters/minute, enables a low-heat-loss distribution of the oil flow. The excess oil flow flows via the gear set into the return flow of the wheel loader
Heavy-duty wheels
instead of the standard super-elastic tires, stable steel welded construction, tread vulcanized on wheel body made of solid elastic solid rubber, steel wire mesh in the tire base, double-welded steel tube hub, recommended for uneven ground in outdoor use, surcharge per wheel
Special paint finish
a variety of RAL colors can be selected (standard: Red/RAL 3020)
Technical data
| Model → | GSX-1200 | GSX-1200 L | GSX-1200 / 400 | GSX-1500 | GSX-1500 L | GSX-1500 / 500 | GSX-2000 | GSX-2000 / 670 | GSX-2300 | GSX2400 / 800 |
|---|---|---|---|---|---|---|---|---|---|---|
| Working width | 1200 mm | 1200 mm | 1200 mm | 1500 mm | 1500 mm | 1500 mm | 2000 mm | 2000 mm | 2300 mm | 2400 mm |
| Dirt container volume | 240 liters | 240 liters | 400 liters | 260 liters | 260 liters | 500 liters | 305 liters | 670 liters | 350 liters | 800 liters |
| Brush roller diameter | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Overall width | 1380 mm | 1380 mm | 1380 mm | 1710 mm | 1680 mm | 1680 mm | 2210 mm | 2180 mm | 2480 mm | 2580 mm |
| Length | 1530 mm | 1530 mm | 1710 mm | 1530 mm | 1530 mm | 1710 mm | 1530 mm | 1710 mm | 1530 mm | 1710 mm |
| Height | 830 mm | 830 mm | 940 mm | 830 mm | 830 mm | 940 mm | 830 mm | 940 mm | 830 mm | 940 mm |
| Weight (basic unit) | 370kg | 305 kg | 470 kg | 400 kg | 360 kg | 545 kg | 470 kg | 730 kg | 600 kg | 880 kg |
| Side brush right / left | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional |
| Water spray device | optional | optional | optional | optional | optional | optional | optional | optional | optional | optional |
| Hydraulic unit | optional | – | optional | optional | – | optional | optional | optional | optional | optional |
All data is approximate and non-binding. Subject to change in the interest of technical development. Length and height specifications are measured with fork mounting
Carrier vehicles
| Model → | GSX-1200 | GSX-1200 L | GSX-1200 / 400 | GSX-1500 | GSX-1500 L | GSX-1500 / 500 | GSX-2000 | GSX-2000 / 670 | GSX-2300 | GSX2400 / 800 |
|---|---|---|---|---|---|---|---|---|---|---|
| Forklift * | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | (✓) | (✓) |
| Wheel loader * | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ |
| Compact loader * | ✓ | – | ✓ | ✓ | – | ✓ | (✓) | (✓) | – | – |
| Telescopic loader * | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | (✓) |
| Tractor * | ✓ | (✓) | ✓ | ✓ | (✓) | ✓ | ✓ | ✓ | ✓ | ✓ |
| Unimog * | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ |
| Multicar * | – | ✓ | – | – | ✓ | – | – | – | – | – |
| Municipal vehicles* | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | – |
All data is approximate and non-binding. Subject to change in the interest of technical development. *depending on lifting capacity and vehicle width
