GSB Model Dirt Collection Sweeper
for mounting on your carrier vehicle
Dirt-collecting sweeper with integrated dirt container, dirt container volume approx. 240 liters, maintenance-free hydraulic drive and adjustable sweeping roller.
Working widths: 1.20 m – 2.00 m
GSB-1200 and GSB-2000 Attachment Dirt Collection Sweeper

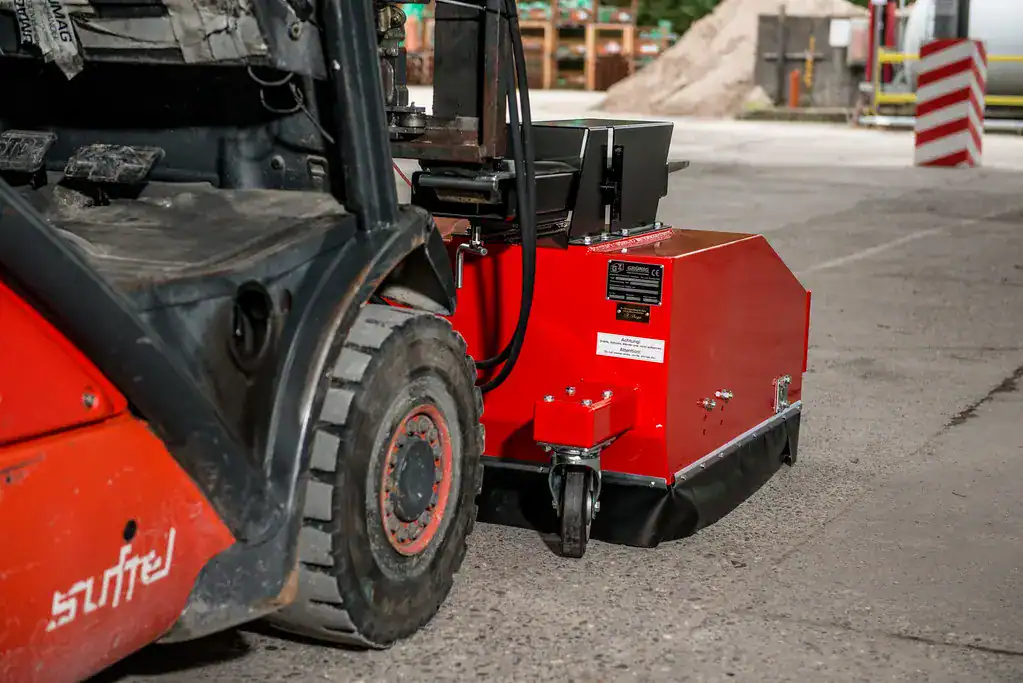

With integrated dirt container, dirt container volume approx. 240 liters or 305 liters, maintenance-free hydraulic drive, adjustable sweeping roller, sweeping roller diameter 600 mm, sweeping roller trimming 50/50% polypropylene/steel crimped wire, three 360° rotating support wheels, including Indunorm CEL ST 3 hydraulic quick couplings, without mounting for carrier vehicle.
Full encapsulation of the sweeper
For virtually dust-free operation of the sweeper, including all-round dust protection rubber and quick-release strips for effortless replacement of the dust protection rubber.
Typical industries for the use of GSB attachment sweepers
- Recycling industry
- Wood processing
- Chemicals
- Pulp and paper industry
Available mounting devices

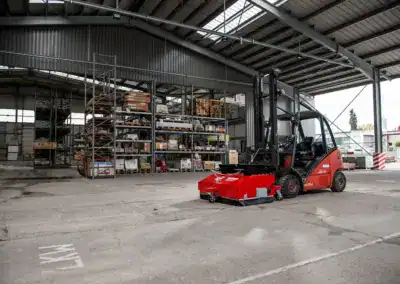

Forklifts and wheel loaders with pallet forks

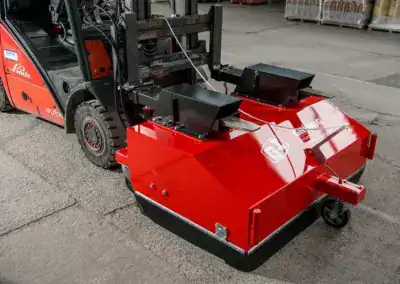

Mounting for hanging the sweeper in the forklift forks of a forklift or wheel loader, maximum fork cross-sectional dimensions 185 x 68 mm, with floating position, including fork clamping screw connection and safety bracket
Quick-change device wheel loader
Wheel loader and compact loader mounting plate for direct mounting of the sweeper to the quick-change device of a wheel loader, with floating position
Front loader
Device for mounting the sweeper to the front loader of a tractor, with floating position, (the mounting device for pallet forks is also required)
Front triangle mounting small tractors
Front triangle for mounting the sweeper or a lifting mast to the front hydraulics of a municipal tractor
Three-point hitch tractors
for mounting the sweeper or a lifting mast to the front/rear three-point linkage of a tractor
Device plate Unimog
suitable for Unimog vehicle plate for front mounting of the sweeper or a lifting mast to a Unimog (the lifting hydraulic cylinder or the lifting mast for high discharge is also required)
Lifting hydraulic cylinder
the Unimog equipment plate is also required for emptying the sweeper, emptying height approx. 50 cm
Lifting mast for high discharge for GSB-1200 / GSB-1500
the front three-point mounting for small tractors, front/rear three-point mounting for tractors or mounting plate for Unimog is also required, emptying height 1.60 m, (a 2nd free control circuit is required on the carrier vehicle)
Increased lifting height for lifting mast, 2 m
suitable for both versions of the lifting mast
Forks for lifting mast
required for mounting a GSB-2000 on a lifting mast (the sweeper must be equipped with forklift attachment)
Chassis for lifting mast
to reduce the front axle load of the carrier vehicle, in conjunction with lifting mast
Increased pendulum travel for floating position
increased vertical pendulum travel in the floating position of the fork attachment of the sweeper
Equipment
The following additional equipment is available:
Side brush right or left
Sweeping diameter 600 mm, can be switched on separately, adjustable speed, with its own hydraulic drive. Optional side brush Ø 750 mm including carrier plate available
Impact protection for side brush
massive steel bracket around side brush
Water spray system 100 liters / 200 liters
operated with 12 V electric pump, spray bar with finely atomizing nozzles, including water tank
24 V water pump
24 V instead of 12 V (optional)
100% steel bristle trim for main brush roller
instead of the standard trim made of 50/50% steel/polypropylene
Hydraulic unit with gasoline engine
as self-drive for all models of the GSX series, robust 1-cylinder, Briggs & Stratton petrol engine, with electric starter, incl. remote control, compl. with soundproof hood, vibration damper and hydraulic pump
Remote control for diesel unit
complete with water- and impact-protected control unit for the operation of diesel engine and water spray device
hydraulic operation of the emptying mechanism
Gear oil divider
required for large oil delivery rates, enables a low-heat-loss distribution of the oil flow. The excess oil flow flows via the gear set into the return flow of the wheel loader
Special paint finish
a variety of RAL colors can be selected (standard: Red/RAL 3020)
Technical data
| Model → | GSB-1200 | GSB-1500 | GSB-2000 |
|---|---|---|---|
| Working width | 1200 mm | 1500 mm | 2000 mm |
| Dirt container volume | 240 liters | 260 liters | 305 liters |
| Sweeping roller diameter | 600 mm | 600 mm | 600 mm |
| Overall width | 1410 mm | 1710 mm | 2210 mm |
| Length | 1530 mm | 1530 mm | 1530 mm |
| Height | 830 mm | 830 mm | 830 mm |
| Weight (basic unit) | 350kg | 400 kg | 470 kg |
| Side brush right / left | optional | optional | optional |
| Water spray device | optional | optional | optional |
| Hydraulic unit | optional | optional | optional |
All data is approximate and non-binding. We reserve the right to make changes in the interest of technical development. Length and height specifications are measured with fork attachment
Carrier vehicles
| Model → | GSB-1200 | GSB-1500 | GSB-2000 |
|---|---|---|---|
| Forklift * | ✓ | ✓ | ✓ |
| Wheel loader * | – | – | – |
| Compact loader * | (✓) | (✓) | (✓) |
| Telescopic loader * | (✓) | (✓) | (✓) |
| Tractor * | (✓) | (✓) | (✓) |
| Unimog * | – | – | – |
| Multicar * | – | – | – |
| Municipal vehicles* | – | – | – |
All data is approximate and non-binding. Subject to change in the interest of technical development. *depending on lifting capacity and vehicle width
